Molybdenum-L X-ray Tube voltage=3.0 kV, Current=20 mA, Filter=36 μm Mylar, Dose rate=0.65 Gy/min Material: Cultured mouse m5S cells (G1-arrested stationary phase)                                                         □ Generation system

.

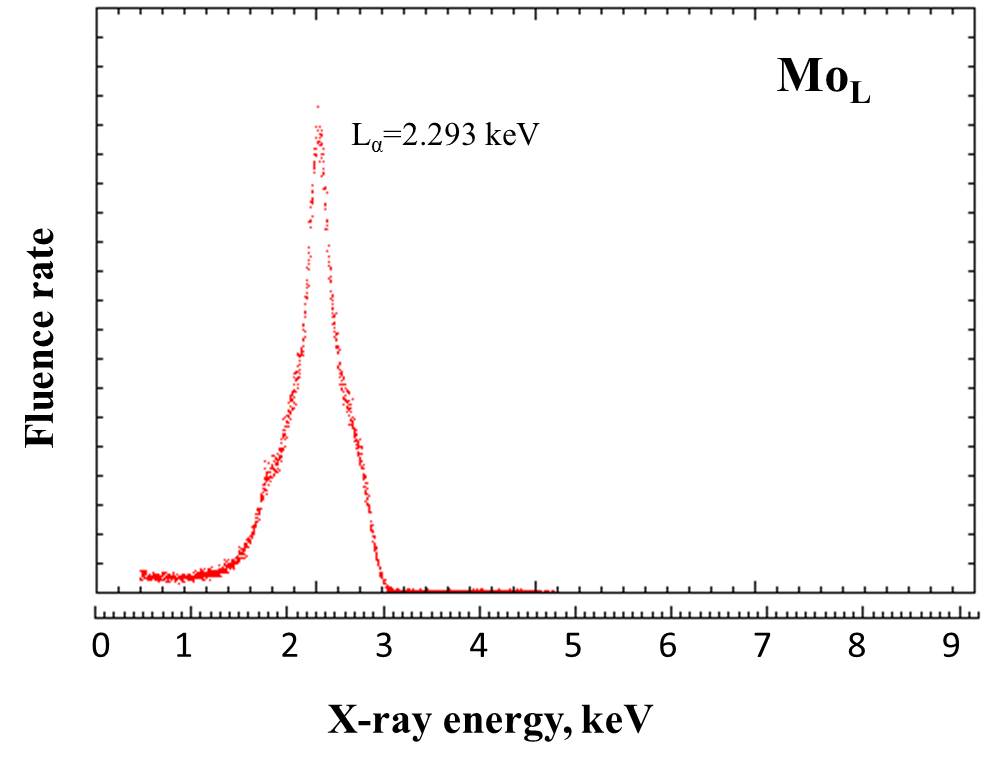

	Mo-L
	Dose	No. of	Aberrations										Distribution of cells with indicated number of aberrations
	(Gy)	cells	Tet	Tri	Dic	Rc	Ra	aM	F	del	S	del	Aberr	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
	0.1	100	0	0	7	0	0	0	8	1	1	1	Dic	93	7
													D+R	93	7
													Del	98	2
													All cs	91	9
	0.2	100	0	0	18	0	1	0	23	7	5	3	Dic	84	14	2
													D+R	83	15	2
													Del	91	8	1
													All	74	23	3
	0.3	100	0	0	42	0	2	1	49	10	10	8	Dic	65	30	4		1
													D+R	65	28	6		1
													Del	85	12	3
													All	55	32	11	1			1
	0.4	100	0	0	63	0	4	9	82	25	24	19	Dic	50	40	7	3
													D+R	47	42	8	3
													Del	68	23	6	3
													All	32	38	15	10	4		1
	0.5	100	0	0	80	0	5	4	95	21	21	17	Dic	48	32	13	6	1
													D+R	46	32	14	7	1
													Del	69	24	7
													All	30	33	23	8	6
																														.
	Ref:	Endo, S., Hoshi, M., Takada, J., Takatsuji, T., Ejima, Y., Saigusa, S., Tachibana, A. and Sasaki, M. S. (2006) Development, beam characterization and chromosomal effectiveness of X-rays of
		RBC characteristic X-ray generator. J. Radiat. Res., 47:103-112.
																														.
