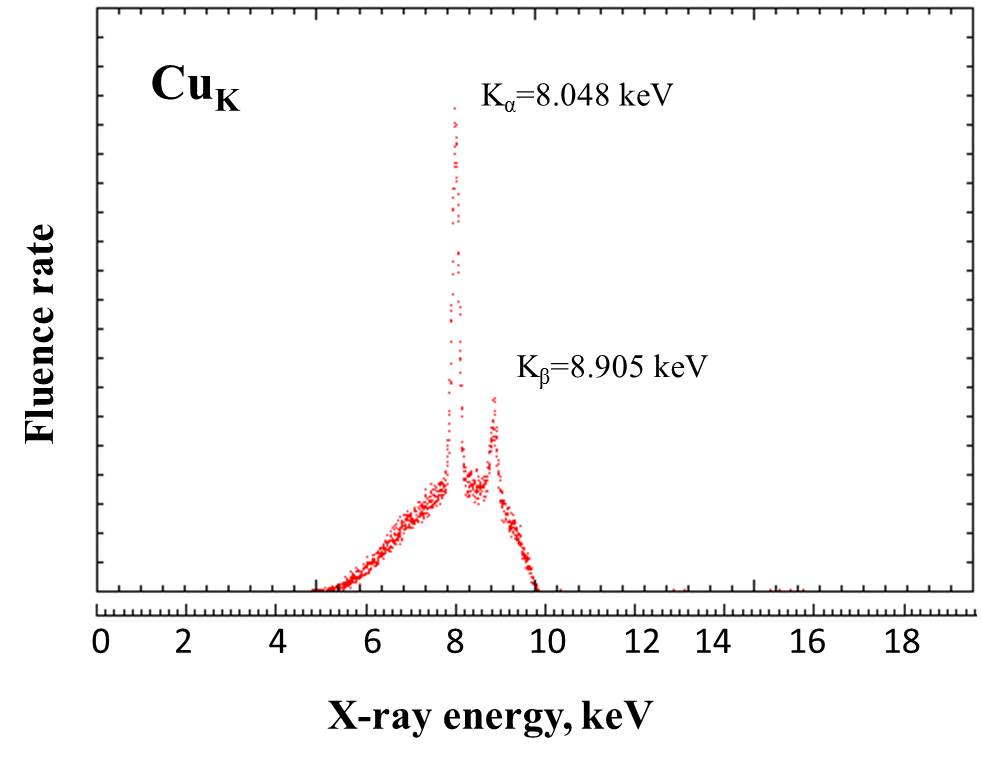

Copper-K X-ray (8.048 keV) Tube voltage=10.0 kV, Current=1mA, Filter=150μm Al, Dose rate=0.3 Gy/min Material: Cultured mouse m5S cells (G1-arrested stationary phase)                                                        □ Generation system

.
	Cu-K
	Dose	No. of	Aberrations										Distribution of cells with indicated number of aberrations
	(Gy)	cells	Tet	Tri	Dic	Rc	Ra	aM	F	del	S	del	Aberr	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
	1.0	200	0	0	20	0	0	0	24	4	2	2	Dic	182	16	2
													D+R	182	16	2
													Del	194	6
													All cs	176	22	2
	2.0	200	0	0	48	0	0	0	51	3	9	9	Dic	156	40	4
													D+R	156	40	4
													Del	190	8	2
													All	151	43	2	3	1
	3.0	200	0	0	64	0	0	0	86	22	16	16	Dic	140	56	4
													D+R	140	56	4
													Del	164	34	2
													All	114	70	16
	4.0	200	0	0	110	0	4	0	128	20	20	18	Dic	112	66	22
													D+R	110	66	24
													Del	174	18	4	4
													All	94	64	38	4
	5.0	200	0	0	147	0	12	0	155	29	65	44	Dic	88	83	25	2	2
													D+R	80	87	29	2	2
													Del	138	51	11
													All	56	82	44	14	2		2
																														.
	Ref:	Endo, S., Hoshi, M., Takada, J., Takatsuji, T., Ejima, Y., Saigusa, S., Tachibana, A. and Sasaki, M. S. (2006) Development, beam characterization and chromosomal effectiveness of X-rays of
		RBC characteristic X-ray generator. J. Radiat. Res., 47:103-112.
																														.
