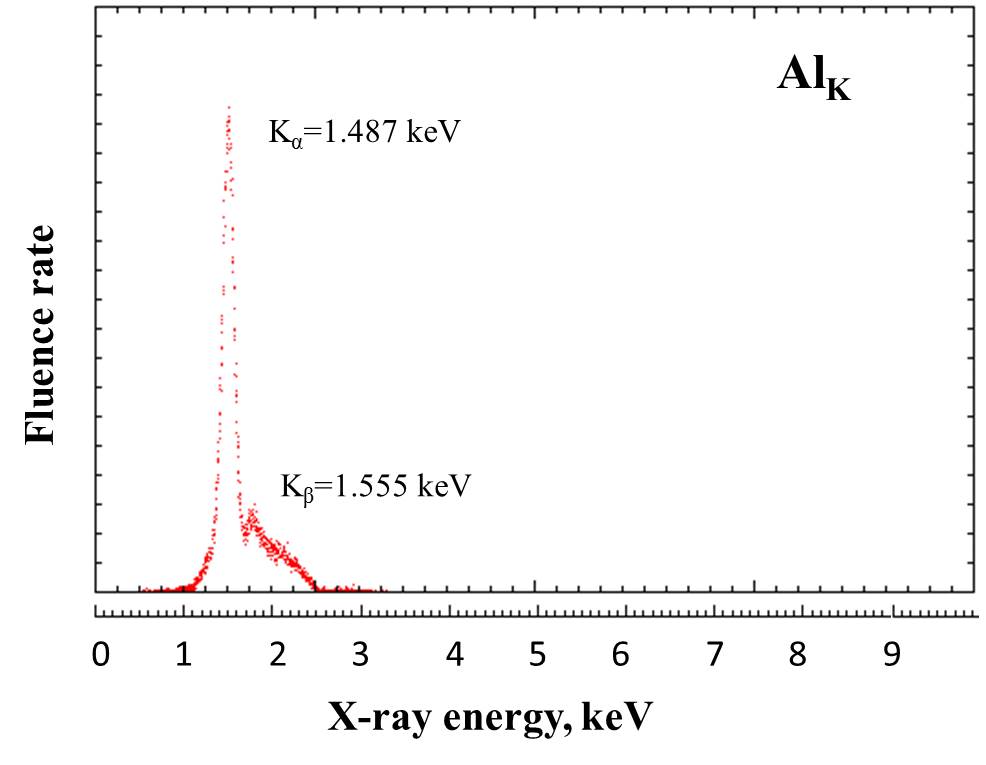

Aluminium-K X-rays (E=1.487 keV) Tube voltage=2.5 kV, Current=10 mA, Filter=None, Dose rate=1.8 Gy/min Material: Cultured mouse m5S cells (G1-arrested stationary phase)                                                                          □ Generation system

.
	Al-K
	Dose	No. of	Aberrations										Distribution of cells with indicated number of aberrations
	(Gy)	cells	Tet	Tri	Dic	Rc	Ra	aM	F	del	S	del	Aberr	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
	0.1	100	0	0	5	0	1	0	8	3	3	3	Dic	95	5
													D+R	94	6
													Del	94	6
													All cs	89	10	1
	0.2	100	0	0	23	0	1	1	26	5	2	0	Dic	79	19	2
													D+R	78	20	2
													Del	95	5
													All	75	20	5
	0.3	100	0	0	55	0	5	3	70	18	18	16	Dic	61	25	12	2
													D+R	58	27	12	3
													Del	74	18	8
													All	41	33	18	5	2	1
	0.4	100	0	0	86	0	11	10	108	25	42	40	Dic	40	37	20	3
													D+R	34	40	22	3	1
													Del	58	22	17	3
													All	21	26	28	17	3	3	2
	0.5	100	0	0	133	0	5	9	157	29	36	31	Dic	20	41	25	14
													D+R	19	41	23	17
													Del	58	28	11	2	1
													All	12	27	24	22	10	4	1
																														.
	Ref:	Endo, S., Hoshi, M., Takada, J., Takatsuji, T., Ejima, Y., Saigusa, S., Tachibana, A. and Sasaki, M. S. (2006) Development, beam characterization and chromosomal effectiveness of X-rays of
		RBC characteristic X-ray generator. J. Radiat. Res., 47:103-112.
																														.
